MHA ZENTGRAF / STAUFF

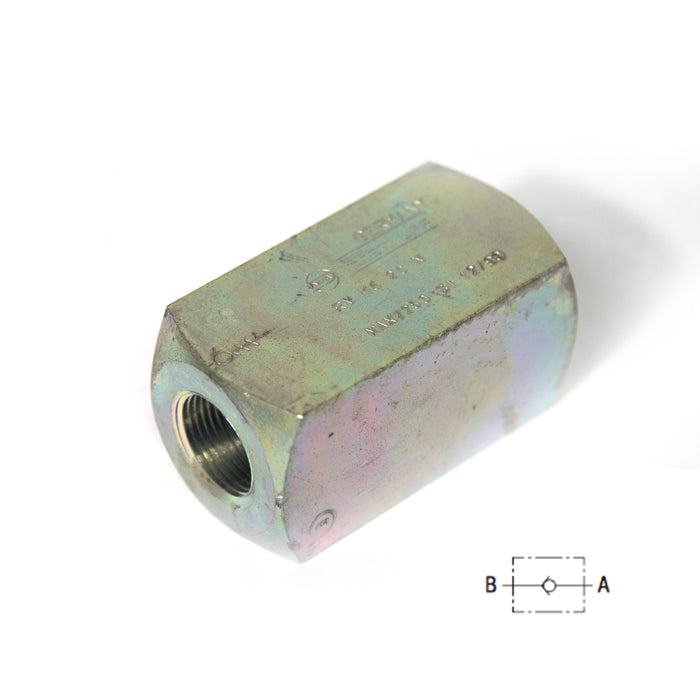

Type / Size: RV-16
Flow Control Valve
Heavy-duty check valve
Characteristics:
- Allows a single-directional flow only.
- Designed for in-line assembly witth female BSP, NPT and SAE connections.
- Metal to metal seating.
- Suitable for hydraulic fluids.
Materials:
- Body made of steel (1.0715), zinc/iron-plated (Fe/ Zn Fe Co 8 C) and free of hexavalent chromium CrVI
Technical data:
- Opening pressure: 0,5 bar/ 7PSI
- Maximum working pressure: 500 bar/ 7250 PSI
- Operating temperature range: -20°C ... +100°C / -4°F ... +212°F
Dimensions:
Type / Size: RV-16
Thread options: G3/4 BSP
3/4 NPT
1-1/16-12UN (3/4" SAE)
Weight: 2.64 lbs
