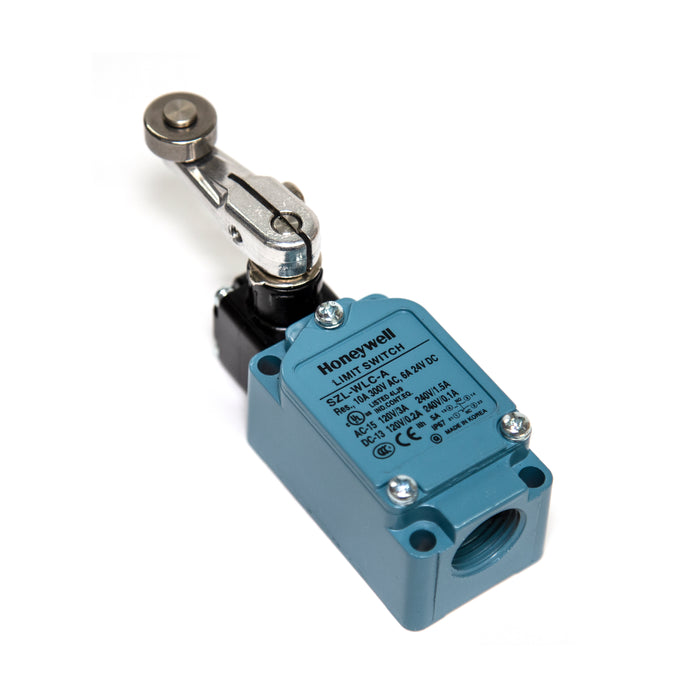

MICRO SWITCH (General Purpose Limit Switches)
SZL-WL Series
2.2" High Roller Lever Actuator
| Style | C |
| Switch Type | Limit |
| Actuator Style | Roller Lever |
| Number of Circuits Controlled | 1 |
| Switch Starting Position | 1 Off (Normally Open) or 1 On (Normally Closed) |
| Switch Action | Springs Back (Momentary) |
| Industry Designation | SPDT |
| Switching Current @ Voltage | 10 A @ 300 V AC, 6 A @ 24 V DC |
| Maximum Voltage | 300V AC 250V DC |
| Actuation Force | 48 in.-oz. |
| Actuator Height | 2.2" |
| Wire Connection Type | Screw Terminals |
| Number of Terminals | 4 |
| Housing | |
| Length | 1.6" |
| Height | 2.7" |
| Depth | 1.6" |
| Housing Material | Aluminum |
| Conduit Trade Size | 1/2 |
| Thread Type | NPT |
| Connection Gender | Female |
| Mounting | |
| Fasteners Included | No |
| Number of Holes | 4 |
| Hole Diameter | 0.2" |
| Environment | Washdown, Temporary Submersion |
| Environmental Rating | IP67 |
| Specifications Met | UL Listed, CE Marked, C-UL Listed |
| RoHS | RoHS 3 (2015/863/EU) compliant |
Rated IP67, these switches are protected from wash-downs and temporary submersion. When an object in motion comes into contact with the actuator, it sends a signal to open or close a circuit. IP67 construction often allows for use in dusty and dirty indoor and outdoor applications.
Mechanical service life of up to 10,000,000 operations promotes the durability required for use in many types of industries from factory floor to agriculture and/or machinery.
IN THE BOX:
1- limit switch
1- hardwares and mounting bolts
